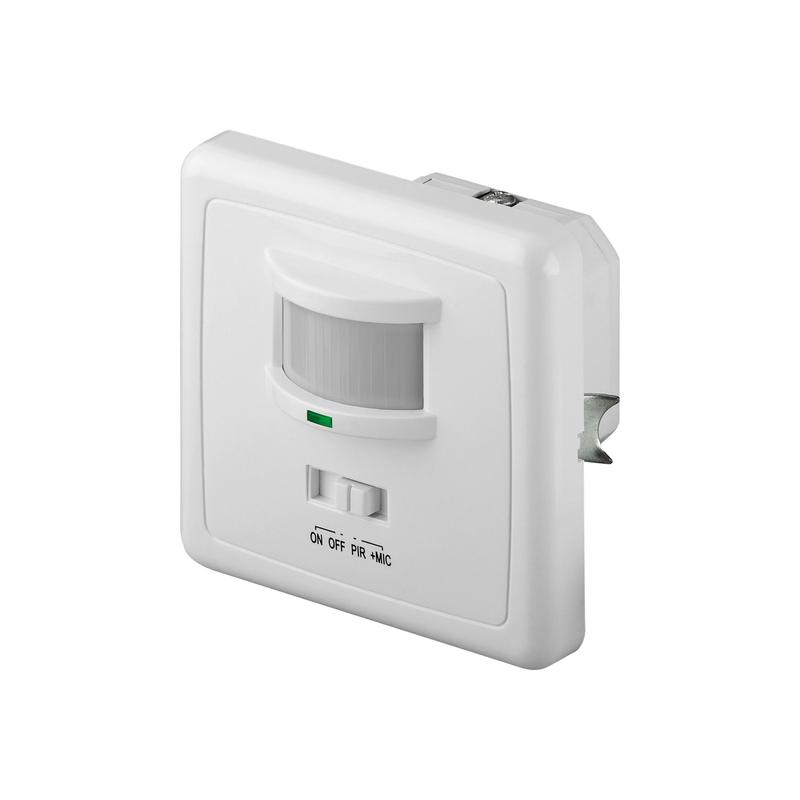

This product is an infrared motion sensor for indoor use. It reacts to heat radiation (infrared radiation) of moving objects that enter the detection area of the sensor, e. g. people and animals, etc. Entering the detection area of the sensor switches the connected electrical consumer on and after an adjustable time off again automatically. A built-in photocell prevents working of the motion sensor during sunlight. In addition, the ambient brightness can be adjusted with a regulator.
Environment: Indoor
Features: Flush mountable
Product Type: Motion sensor
Detection Angle: 160 degrees
Detection Mode: Passive infrared (PIR)
Detection Range: 9 m
Compliant Standards: RoHS, IP20
Nominal Voltage: AC 230 V
Power Consumption Operational: 0.82 Watt
Warranty: 2-year warranty
Depth: 6 cm
Height: 8.5 cm
Weight: 142 g
Width: 8.5 cm
Humidity Range Operating: 0 - 93%
Max Operating Temperature: 40 °C
Min Operating Temperature: -20 °C
EAN: 4040849951718
-
